Jupyter Architecture

A local notebook session usually involves three roles rather than a single “notebook process”:

  1. Client: the browser or editor interface where cells are edited and outputs are displayed.
  2. Server: manages files, sessions, authentication, HTTP/WebSocket connections, and kernel lifecycle.
  3. Kernel: a language-specific process that executes code and keeps runtime state.

The roles can run on one machine or across a remote connection. Other frontends can also speak the Jupyter messaging protocol without using the classic Notebook UI.

What the notebook file contains​

An .ipynb file is JSON containing:

  • Markdown and code cells;
  • cell and notebook metadata;
  • saved outputs such as text, images, and rich display data;
  • kernel and language hints.

It does not contain the live Python or R process, installed packages, external datasets, environment variables, or all the hidden state that influenced execution. A saved notebook may therefore display correctly on the original machine yet fail when rerun elsewhere: the environment's state does not travel with the file.

Client, server, and kernel flow​

When a session needs a kernel, the server starts one or connects to an existing one and keeps its ZeroMQ connection details.

  • The browser client normally communicates with the server over HTTP and WebSocket.
  • The server acts as a bridge, forwarding messages to the kernel's Jupyter channels.
  • The kernel retains variables between cells until it is restarted or shut down. Its process and address space hold this state; this language kernel is distinct from the operating-system kernel.

Opening a notebook often starts or connects to its selected kernel, but exact behavior depends on the frontend and session state. Viewing a static notebook does not require a live kernel.

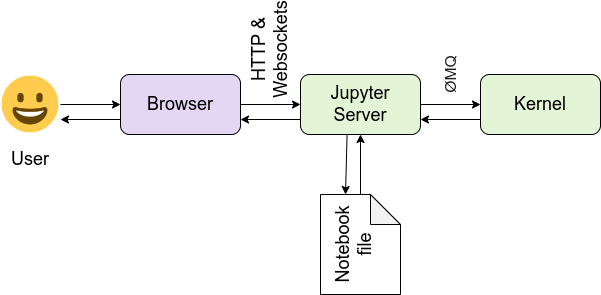

Browser, Jupyter server, kernel, and notebook file connected through their separate communication paths.Open full-size image

Follow the two routes out of the server: one sends code to the kernel; the other reads and writes the notebook file. Saving a notebook therefore saves a document, not the live kernel process. The browser connects through HTTP and WebSockets, while the server communicates with the kernel through ZeroMQ.

Project Jupyter, notebook components. · BSD 3-Clause

Conversion with nbconvert​

nbconvert follows these steps:

  1. Read the notebook document.
  2. Apply optional preprocessors.
  3. Pass the result to an exporter, such as HTML or Markdown.
  4. For some formats, apply templates or postprocessors.

By default, conversion does not execute code; ordinary export can reuse the outputs already saved in the file. The notebook runs again only when execution is explicitly configured.

jupyter nbconvert --to html analysis.ipynb

Practical consequence​

A notebook's execution count and visible output are not enough to establish reproducibility.

To make the execution reproducible:

  • Restart the kernel.
  • Run all cells in order.
  • Pin the dependency environment, for example with requirements.txt or environment.yml.
  • Record all external input data.

Move reusable code and production code into separate modules with tests, particularly when it is production-critical. The notebook should call those modules rather than hold the application logic.
